THE FLASH EVENT HANDLERS

the flash event handlers
The first six Actions--Go to, Play, Stop, Toggle High Quality, Stop All Sounds, and Get URL--provide all the behaviors you need to make an interesting interactive Flash movie. But those six Actions can't make your movies interactive on their own. They need to be told when to happen. To tell Flash when an Action should occur, you need Event Handlers. Event Handlers specify the condition(s) under which an Action will be made to happen. For instance, you might want a mouse-click on a button to initiate a Play Action, or you might want a movie to stop when a certain frame in the timeline is reached. Creating interactivity in your movies is simply a matter of deciding what event you want to detect (mouse click, key stroke, frame played etc), then adding the appropriate Event Handler to detect it, and specifying the Action(s) that should be performed when it happens.

There are three kinds of Event Handlers in Flash. Those that detect mouse activity on buttons (Button Manipulation), those that recognize when a key is pressed on the keyboard (Key Strokes), and those that respond to the progression of the timeline (Keyframes).

button manipulation

Event Handlers that occur based on the user’s interaction with a button rely entirely on the location and movement of the mouse pointer. If the mouse pointer comes in contact with a button’s Hit area, it changes from an arrow to a hand symbol (See Chapter 7 for information on Hit areas). At that time the mouse is described as "over" the button. If the mouse pointer is not over a button, it is said to be "out" or "outside" of the button. General movement of the mouse without the mouse button depressed is referred to as "rolling". General movement of the mouse with the mouse button depressed is referred to as "dragging".

Here are the mouse-based Event Handlers for Flash buttons:

caution
Event Handlers and Actions on buttons must be placed only on button instances on the stage, not on the four frames in the timeline of the original button symbol. Though the Actions tab is available in the Frame Properties dialog box of button frames, Actions placed on those frames are ignored.

Press
A single mouse click can actually be divided into two separate components: the down-stroke (the press) and the up-stroke (the release). A Press event occurs when the mouse pointer is over the Hit area of a button and the down-stroke of a mouse click is detected. Press is best used for control-panel style buttons, especially toggle switches. Press is not recommended for important user moves (such as irreversible decisions or primary navigation) because it does not give the user any opportunity to abort their move.

Release
A Release event occurs when the mouse pointer is over the Hit area of a button and both the down-stroke and the up-stroke of a mouse click are detected. Release is the standard button click Event Handler.

Release Outside
A Release Outside event occurs in response to the following series of mouse movements: the mouse pointer moves over a button’s Hit area; the mouse button is pressed; the mouse pointer is moved off the button’s Hit area; the mouse button is released. Release Outside can be used to react to an aborted button click.

Roll Over
A Roll Over event occurs when the mouse pointer moves onto the Hit area of a button without the mouse button depressed.

cross-reference
The Roll Over Event Handler should not be used to make visual changes to a button (such as making it appear "active" with a glow or size increase). Flash has a built in method of handling strictly visual changes on buttons that is described in Chapter 7. The Roll Over Event Handler should only be used to initiate Actions. For a practical example of when to use the Roll Over Event Handler, please see Chapter 14.

Roll Out
A Roll Out event occurs when the mouse pointer moves off of the Hit area of a button without the mouse button depressed.

Drag Over
A Drag Over event occurs in response to the following series of mouse movements: the mouse button is pressed while the mouse pointer is over the Hit area of a button; the mouse pointer moves off the Hit area (mouse button still depressed); the mouse pointer moves back over the hit Hit area (mouse button still depressed). Drag Over is rather obscure, but could be used for special cases of interactivity such as revealing an easter egg in a game.

Drag Out
A Drag Out event occurs in response to the following series of mouse movements: the mouse button is pressed while the mouse pointer is over the Hit area of a button; the mouse pointer moves off the Hit area (mouse button still depressed).

key strokes
The key stroke Event Handler lets you execute an Action when the user presses a key on their keyboard. The implementation method for Key stroke Event Handlers is potentially confusing: to add a key stroke Event Handler, you must first place a button on stage at the frame where you want the keyboard to be active. You then attach the key stroke Event Handler to the button.

tip
If you are only using the button as a container for your key stroke Event Handler and you do not want the button to appear on stage, you should make sure that (in Symbol editing mode) all the frames of the button are blank.

Example: How to Make an Event Handler that Detects the Pressing of the "s" Key:

Make a new Layer.
Place a button on the new Layer.
Bring up the Instance Properties dialog box for the button by selecting it on stage and choosing Modify>>Instance (Command+I or Ctrl+I).
Select the Actions tab.
Click the button with the plus sign (+) on it in the top left corner of the Actions tab. A list of all the actions will appear.
Select OnMouseEvent. A list of settings for OnMouseEvent will appear on the right side of the Actions tab.
Select the Key Press option of the Event setting.
In the Key Press text field, type "s".
With the words "On (Key: s)" highlighted in the Actions Listbox, click the plus (+) button in the top left corner of the Actions tab.
Select your desired Action(s).
Click OK.

The key stroke Event Handler, which is new to Flash 4, opens up many new possibilities for Flash. Movies can now have keyboard based navigation, buttons can have keyboard shortcuts for convenience and accessibility, and games can have keyboard controlled objects (like ships and animated characters). But there are some potential "gotchas" to keyboard usage. If you’re planning on ambitious keyboard-based projects, you may want to check this list of potential issues first:

The <ESC> key will not work as a key stroke.
Multiple key combinations are not supported. This rules out diagonals as two-key combinations in the classic four-key game control setup. It also means shortcuts like <CTRL> + "s" are not available. Uppercase is functional, however.
If presented in a browser, the Flash movie must have "focus" before key strokes will be recognized. To "focus" the movie, the user must click anywhere in the space it occupies. Keyboard-based movies should include instructions that prompt the user to perform this initial mouse click. Key strokes will not function until the user has clicked at least once somewhere in the Flash movie.
Because the <ENTER>, less than (<), and greater than (>) keys are used as authoring shortcuts in the Test Movie environment, you may want to avoid using them as control keys in your movies. If you need to use those keys in your movies, make sure to test in a browser.
Key stroke events are case sensitive. For example, an UPPER CASE letter "S" and a lower case letter "s" could trigger two different Actions. There is no case-insensitive key stroke Event Handler (one that would allow both cases of a letter to trigger the same Action). Achieving case-insensitivity would require duplication of Event Handler and Action statements.

keyframes
The Keyframe Event Handler depends not on the user, but on the playback of the movie itself. Any action can be attached to any key frame on the timeline. An Action attached to a Keyframe is executed when the Playhead enters the Keyframe, whether it enters naturally during the linear playback of the movie or as the result of a Go to Action. So, for instance, you may place a Stop Action on a Keyframe to pause the movie at the end of an animation sequence.

In some multimedia applications, Keyframe Event Handlers could differentiate between the Playhead entering a Keyframe and exiting a Keyframe. In Flash, there is only one kind of Keyframe Event Handler (essentially, "On Enter"). Hence, as an author, you do not need to add Key Frame Event Handlers explicitly—they are a presumed component of any Action placed on a Keyframe.

Loops in Flash movies are ordinarily produced with Actions on Keyframes. Let’s take a look at how to make a simple loop using an Action on a Keyframe:

Example: Making a Loop with a Keyframe Event Handler

Create a new movie with a single Layer (Flash will name it Layer 1).
Add 49 Frames to that Layer by clicking on Frame 50 in Layer 1 and choosing Insert>>Frame (F5).
Add a Blank Keyframe at Frames 30, 35, 36, and 50 by clicking on each of those frames and choosing Insert>>Blank Keyframe (F7).
On Frame 1, draw a green circle.
On Frame 30, draw a blue square.
On Frame 35, draw a red rectangle.
On Frame 50, draw a yellow circle.
Bring up the Frame Properties dialog box for Frame 36 by double-clicking it in Layer 1 of the timeline.
Click the plus (+) button in the top left corner of the Actions tab.
Select Go to. A Go to and Stop Action will be placed in the Actions Listbox.
Check the Go to and Play option of the Control setting for Go to.
In the Frame setting, make sure Number is selected, then type "30" in the Number text field. Your Frame Properties dialog box should look like this:

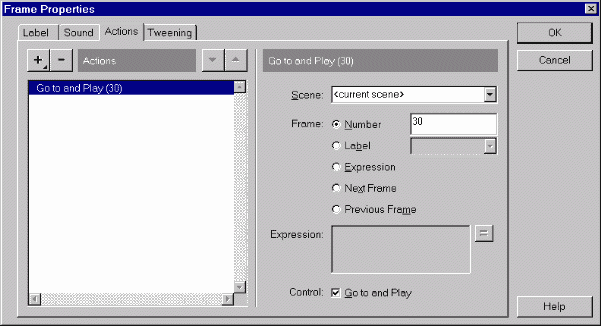

Figure 13: Adding a Go to Action to a Frame.
Click OK.

Now, Test your movie by choosing File>>Publish Preview>>Flash. You should see a green circle appear, then a blue square, then a red rectangle. After the red rectangle appears, our Go to Action on Frame 36 should redirect the Playhead back to Frame 30, so you should see the blue square again. And because the Go to Action is set to Go to and Play, the Playhead will play through to Frame 36 again, where it will re-execute the Go to and Play Action, once again sending the Playhead back to Frame 30. It will repeat this cycle in an endless loop. If you’ve made the movie correctly, you’ll never get to see the yellow circle you drew on Frame 50.

tip
Complex movies can have dozens, or even hundreds of Actions attached to Keyframes. In order to prevent conflicts between uses of Keyframes for animation and uses of Keyframes as Action containers, it is highly advisable to create an entire Layer solely for Action Keyframes. Name the Layer "Actions" and keep it on top of all your Layers for easy access. Remember not to place any objects, text, or artwork on your Actions Layer.

summary
Though Flash interactivity can be powerful and complex, it is based on a relatively simple structure: an Event Handler waits for something to happen (a playback point being reached or the user providing input), and when that something happens does, it executes one or more Actions (which alter movie’s playback, behaviour, or properties, or load a file, or execute a script). Once you understand that fundamental framework, increasing the complexity of your movies is simply a matter of becoming familiar with more Actions, and learning the different ways they can be combined with frames, buttons and key strokes. And that’s exactly what you’ll find out about if you proceed to the next chapter, "Gaining Advanced Control Over Your Movies."
